Milling Tools

916700

Catalogue-No.: 916700
DIN-Standard: WEXO-Standard
Coating: X.TREME
Cutting dia. tolerance: 0/-0,02
Shank dia. tolerance: h6
Spiral: ~30
Shank execution: DIN 6535HA
Substrate: VHM
Execution: FH60; Ball nose end mill
High Speed and High Hard Cutting: qualified for High Speed or High Hard Cutting
Cutting Data: conventional (PDF-Download)
HSM (PDF-Download)



Detailed data

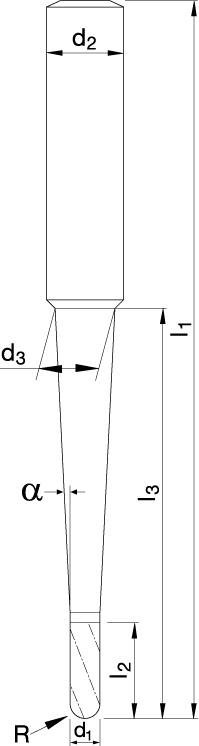

 d1  R  l1  l2  l3  d2  z  d3  α  Art.-Nr.
1,00
0,50
80
3,00
40,00
6,00
2
4.80
3
910951
2,00
1,00
60
5,00
20,00
6,00
2
4.30
5
910952
2,00
1,00
80
5,00
40,00
6,00
2
5.50
3
910953
3,00
1,50
70
8,00
30,00
6,00
2
5.00
3
910954
3,00
1,50
90
8,00
50,00
6,00
2
5.10
1.5
910955
4,00
2,00
70
8,00
28,00
6,00
2
6.00
3
910956
4,00
2,00
90
8,00
48,00
6,00
2
6.00
1.5
910957
5,00
2,50
90
10,00
40,00
8,00
2
8.00
3
910958
5,00
2,50
110
10,00
60,00
8,00
2
7.50
1.5
910959
6,00
3,00
90
12,00
34,00
8,00
2
8.00
3
910960
6,00
3,00
110
12,00
52,00
8,00
2
8.00
1.5
910961
8,00
4,00
100
14,00
36,00
10,00
2
10.00
3
910962
8,00
4,00
120
14,00
55,00
10,00
2
10.00
1.5
910963
10,00
5,00
110
18,00
40,00
12,00
2
12.00
3
910964
10,00
5,00
130
18,00
59,00
12,00
2
12.00
1.5
910965
12,00
6,00
140
22,00
60,00
16,00
2
16.00
3
910966
12,00
6,00
160
22,00
80,00
16,00
2
14.90
1.5
910967


back to the list | new search |


z= Number of flutes
