Milling Tools

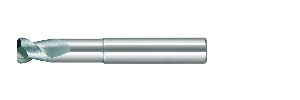

017450

Catalogue-No.: 017450
DIN-Standard: WEXO-Standard
Coating: none
Cutting dia. tolerance: e8
Shank dia. tolerance: h6
Spiral: ~45
Shank execution: DIN 6535HA
Substrate: VHM
Execution: F-Al; Corner radius end mill
High Speed and High Hard Cutting: qualified for High Speed or High Hard Cutting
Cutting Data: HSM (PDF-Download)



Detailed data


 d1  R  l1  l2  l3  d2  z  d3  Art.-Nr.
6,00
1,00
57
7,00
21,00
6,00
2
5.50
010850
8,00
1,00
63
9,00
27,00
8,00
2
7.40
010851
10,00
1,50
72
11,00
32,00
10,00
2
9.20
010852
12,00
1,50
83
12,00
38,00
12,00
2
11.00
010853
16,00
2,00
92
16,00
44,00
16,00
2
15.00
010854
20,00
2,00
104
20,00
54,00
20,00
2
19.00
010855


back to the list | new search |


z= Number of flutes
